Blocking 모니터링 (blocking spid)

내용

데이터베이스 운영을 하면서 lock을 발생시키는 프로세스와 이로 인해 대기하는 프로세스를 확인하고자 하는 경우가 생깁니다. 해당 프로세스에 해당하는 쿼리 또한 정보를 보고 싶어서 한번에 조회가 되도록 쿼리를 작성하여 사용하고 있습니다.



쿼리

create proc [dbo].[sp_mon_blocking]
as
set nocount on

--기초 테이블 생성
create table #a(blocking_spid int,blocking_hostprocess int ,
	blocking_sql varchar(8000)
   ,blockedby_spid int,blockedby_hostprocess int
   ,blockedby_sql varchar(8000),waittime bigint,
   waittype varbinary(50),lastwaittype varchar(100))

--blocking 상황 확인 및 데이터 입력
insert #a(blocking_spid, blocking_hostprocess,
blockedby_spid,waittime,waittype,lastwaittype)
select spid, hostprocess, blocked,waittime,
waittype,lastwaittype from master..sysprocesses where blocked > 0

--데이터가 없으면 여기서 그만!
if @@rowcount = 0
begin
 print 'There is no blocking spid.'
 return
end

--필요한 변수 선언
declare @spid int
declare @sql_handle binary(20)
declare @object_name varchar(100)
declare @text varchar(8000)

--데이터 수집 커서
declare CurBlocked cursor
for
select distinct blocking_spid from #a
union
select distinct blockedby_spid from #a

open CurBlocked

fetch next from CurBlocked into @spid

while @@fetch_status = 0
begin
 select top 1 @sql_handle = sql_handle
 from master..sysprocesses where spid = @spid

 select @object_name = object_name(objectid),
 @text = text from sys.dm_exec_sql_text(@sql_handle)



if @object_name is not null
begin
 update #a set blocking_sql = @object_name where blocking_spid = @spid
 update #a set blockedby_sql = @object_name,
	blockedby_hostprocess = s.hostprocess
 from #a a join master..sysprocesses s on a.blockedby_spid = s.spid
 where blockedby_spid = @spid
end
else
begin

 update #a set blocking_sql = @text where blocking_spid = @spid
 update #a set blockedby_sql = @text, blockedby_hostprocess = s.hostprocess
 from #a a join master..sysprocesses s on a.blockedby_spid = s.spid
where blockedby_spid = @spid
end

 fetch next from CurBlocked into @spid
end

close CurBlocked
deallocate CurBlocked

--잠그는 최 우선 주체가 되는 넘들 입력
insert #a (blocking_spid, blocking_hostprocess, blocking_sql)
select distinct blockedby_spid, blockedby_hostprocess, blockedby_sql from #a
except
select distinct blocking_spid, blocking_hostprocess, blocking_sql from #a


--블로킹 체인을 보여주기 위한 커서
declare CurBlocked cursor
for
select blocking_spid from #a where blockedby_spid is null

open CurBlocked
fetch next from CurBlocked into @spid

while @@fetch_status = 0
begin

WITH Blocking (blocking_spid, blocking_hostprocess,
blocking_sql, blockedby_spid, blockedby_hostprocess,
blockedby_sql,waittime,waittype,lastwaittype, Level)
AS
( select blocking_spid, blocking_hostprocess,
	blocking_sql, blockedby_spid, blockedby_hostprocess,
	blockedby_sql,waittime,waittype,lastwaittype,
	0 AS Level  from #a  where blocking_spid = @spid
  union all
  select a.*, Level + 1  from #a a
  join  Blocking b on a.blockedby_spid = b.blocking_spid
)
select blocking_spid, blocking_hostprocess
,blocking_sql = substring(blocking_sql,PATINDEX('%)[A-z]%', blocking_sql)
	+1,8000-(PATINDEX('%)[A-z]%', blocking_sql)+1))
,blockedby_spid, blockedby_hostprocess
,blockedby_sql = substring(blockedby_sql,PATINDEX('%)[A-z]%', blockedby_sql)
	+1,8000-(PATINDEX('%)[A-z]%', blockedby_sql)+1))
,waittime,waittype,lastwaittype, Level
from Blocking order by Level
 fetch next from CurBlocked into @spid
end
close CurBlocked
deallocate CurBlocked

GO

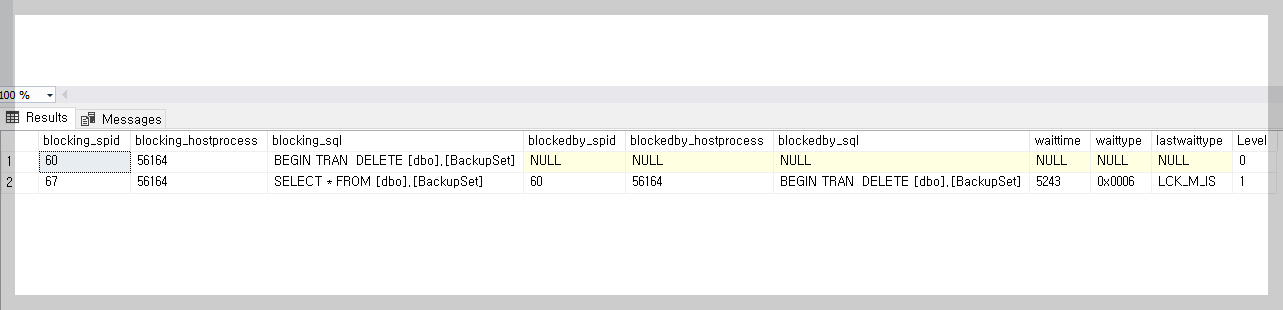

결과
